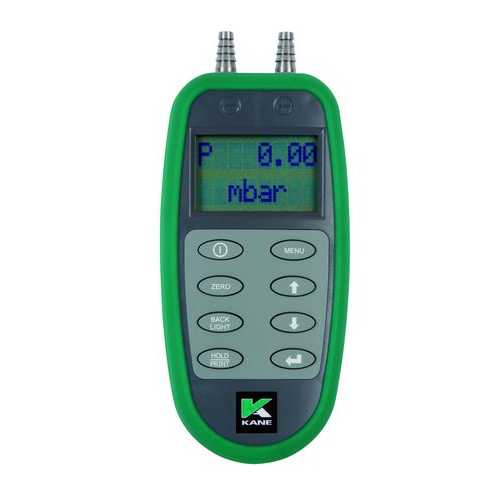

Kane 3500 logging and printing digital pressure meter

The Kane 3500 Series differential digital pressure meters offer high accuracy at low pressure and are therefore suitable for difficult applications such as flue draft measurement and measuring the differential pressure of gas/air ratio valves on modern high efficiency boilers. The pressures in both of these applications pulsate so the 'smooth' feature found on all the KANE3500 series manometers can be used to damp the readings to ease interpretation.

The 3500 series feature temperature compensation to minimise the 'drift' in readings which can occur when electronic manometers are subject to temperature changes, e.g. when taken from a cold van into a warm building.

The KANE3500-1 and KANE3500-2 can both perform timed Let-by, Stabilisation and Tightness Tests which are automatically logged in the memory. The user can adjust the duration of each test.

All models have an infra-red output to an optional printer (IRP3) and can log up to 250 readings manually or automatically, with the logging interval being user adjustable. 'Live', 'held' and 'logged' readings can be printed. Printouts include date, time and a 'header' which can be set by the user.

• Features:
  • 5 pressure ranges available
  • Resolution to 0.1 pascal/0.001 mbar (model 3500-1)
  • Temperature compensated for accuracy
  • Data hold and max/min recording
  • Automated Tightness Testing (models 3500-1 and 3500-2)
  • Selectable units of pressure:
    • mbar
    • Pa
    • hPa
    • kPa
    • inH2O
    • mmH2O
    • mmHg
    • inHg
    • psi
  • Manual and automatic logging (maximum 255 logged readings at 2 to 99 second intervals)
  • 'Live', 'Held' and 'Logged' readings can be printed to Kane IRP3 infra-red linked thermal printer (optional)

• Supplied complete with:
  • Integral protective rubber boot
  • Protective pouch
  • Connecting hose
  • Battery
  • Full 12 month traceable calibration certificate issued in the buyers name
  • 12 month warranty

• Wireless communication:
  • The Kane 3500 digital pressure meters can be factory fitted with optional wireless communications to take advantage of the Kane wireless printer apps. Click the following links for further details
  • • Kane wireless printer app for Android
    • Kane wireless printer app for iPhone
    • Kane wireless printer app for iPad
  • Note: Wireless communications module must be specified at the time of ordering (not available from stock)
